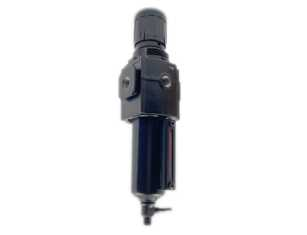

uThe Filter Regulator is One of the Most Popular Air Preparation Units.

uThe Air Filter is Used to Separate Dust,Dirt, Moisture and Other Contaminants from the Compressed Air Line and Combined with a Relieving Regulator to Maintain a Steady Outlet Pressure Unaffected by Inlet Pressure Fluctuation Quick Release Bayonet Metal Bowl with Sight Glass

u40 Micron Element Standard MC4438-03

uOptional 5 Micron Element Available MC4338-01

uManual Drain Standard MC619-50

uOptional Auto Drain MC4000-51R

uA Minimum of 5 PSI and 2 SCFM is Required to Close the Auto Drain

uA Minimum of 3 PSI is Required to Open the Auto Drain

uManual/Auto Drain Connection:  Will Fit 1/8-27 and

u1/8-28 Pipe Thread

u3/16" Tubing Can Be Used to Connect Auto Drain

uBowl Size 4.23 Fluid Oz.

uRelieving Regulators Allow Reduction of

uOutlet Pressure When System is Dead Ended

uFull Flow Gauge Ports (2) 1/4"

uSpring Pressure Range 5-150 psi

uRecommended Accessories

uPanel Nut Only MC5191-88

uWall Mounting Bracket MC4424-50

uTamper Resistant Cover MC4455-51

uNeck Mounting Bracket MC74316-50

uBack Mounted Pressure Gauge DABS-B20-XXX
