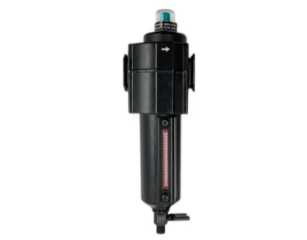

uCompact Coalescing Airline Filters

uParticulate Removal Down to  0.01 PM

uOil Removal Down to 0.01 PPM at 70°F

uwith Inlet Oil Concentration of 17 PPM

uQuick Release Bayonet Metal Bowl with Sight Glass

uManual Drain Standard MC619-50

uService Indicator Turns from Green to Red

uIndicating Filter Element Replacement Required

u.01 Micron Element Standard MC4444-01

uBowl Size 4.23 Fluid Oz.

uInstall a MCF73 Series Particulate Filter Upstream

uto Extended Service Life

uOptional Auto Drain MC4000-51R

uA Minimum of 5 PSI and 2 SCFM is Required to

uClose the Drain

uA Minimum of 3 PSI is Required to Open the Drain

u3/16" Tubing Can Be Used to Connect Auto Drain

uManual/Auto Drain Connection:  Will Fit 1/8-27 and

u1/8-28 Pipe Thread

uRecommended Accessories

uWall Mounting Bracket MC4424-50

uQuick Clamp MC4314-51

uQuick Clamp with Bracket MC4314-52

uQuick Clamp Pipe Adapters

uMC4315-01-25  (1/4")

uMC4315-02-38  (3/8")

uMC4315-03-50  (1/2")
