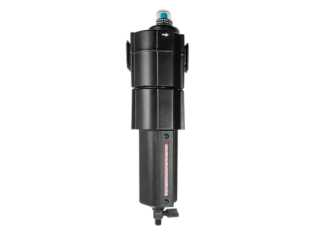

uStandard Coalescing Airline Filters

uParticulate Removal Down to  0.01 PM

uOil Removal Down to 0.01 PPM at 70F

uwith Inlet Oil Concentration of 17 PPM

uQuick Release Bayonet Metal Bowl with Sight Glass

uManual Drain Standard MC619-50

uService Indicator Turns from Green to Red

uIndicating Filter Element Replacement Required

u.01 Micron Element Standard MC4344-02

uBowl Size 8.28 Fluid Oz.

uInstall a MCF74 Series Particulate Filter Upstream

uto Extended Service Life

uOptional Auto Drain MC3000-10

uA Minimum of 5 PSI and 2 SCFM is Required to Close

uthe Drain

uA Minimum of 3 PSI is Required to Open the Drain

u3/16" Tubing Can Be Used to Connect Auto Drain

uManual/Auto Drain Connection:  Will Fit 1/8-27 and

u1/8-28 Pipe Thread

uRecommended Accessories

uWall Mounting Bracket MC4324-50

uQuick Clamp MC4314-51

uQuick Clamp with Bracket MC4314-52

uQuick Clamp Pipe Adapters

uMC4315-03-50  (1/2")

uMC4315-04-75  (3/4")
