货号 | 规格(Inch) | 材质 | 连接方式 | 温度范围 | 工作压力 | 包装数量 | 库存 | 购买数量 |

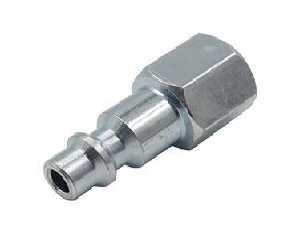

CG-SU3-2PF-J | 1/4" | 钢 | FPT | -40 F ~ 225 F | 300PSI | 9999999 |
-
+
|
|

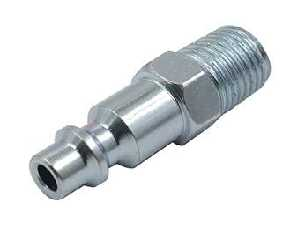

CG-SU3-2PM-J | 1/4" | 钢 | MPT | -40 F ~ 225 F | 300PSI | 9999999 |
-
+
|
uIndustrial Interchange (Type IM) Plugs
uQuick "Push" Connection Design
uSteel Construction
u300 psi Maximum Working Pressure
u1/4" NPT Threads
uZinc Plated Stainless Steel Spring
u35 SCFM at 100 psi w/ 10 psi Pressure Drop
uMeets MIL Spec C-4109F
uAccepts 1/4" Industrial Interchange Couplers
