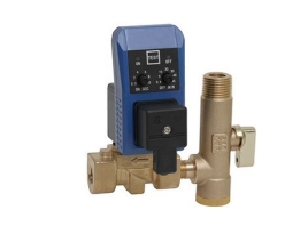

uTimer Specifications

uInterval Time: 0.5 - 45 Minutes

uDischarge Time: 0.5 - 10 Seconds

uSupply Voltage: 230V (+/- 10%)

uCurrent Consumption: 4mA Max.

uEnvironmental Protection: NEMA 4

uCase Material: ABS Plastic FR Grade

uConnection: DIN 43650A ISO4400/6952

u6 Ft. Cord

uWith M1035 R2 9-2020 manual

uTimer with MC Sticker and Timer spec.Label

uBPS is optional

uValve Specifications

uType: 2-Way Direct Acting Valve

uValve Body: Machined Brass Bar

uOrifice:10mm Orifice

uInsulation: Thermal Group H

uEnvironmental Protection: IP 65/NEMA 4

uMounting: Any Position
