STANDARD  标准

Max.pressure:125 psi,except Nos.23MJ93 and 23MJ94 are 100 psi

最大压力：125PSI（No.23MJ93&23MJ94压力为100PSI）

Max. temp.:180°F

最大温度：82℃

Valves have a machined-in seat and Buna N seals,cotter pin pivot assembly,and fully adjustable float arm.

阀门有加工型阀座和丁钠橡胶密封，开口销枢轴组件和完全可调节的浮臂。

HEAVY-DUTY  重型

Max.pressure:165 psi

最大工作压力：165PSI

Max. temp.:180°F

最大温度：82℃

Can be tank wall-mounted

可作壁挂式

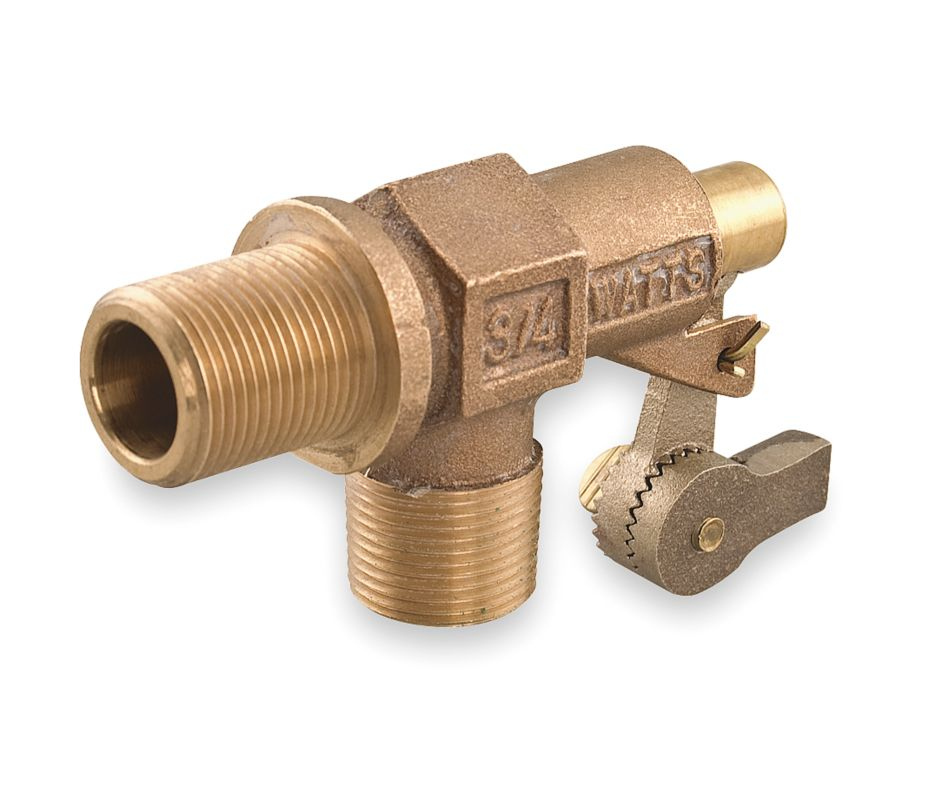

With Threaded Outlet  带外接螺纹

Valves have an MNPT connection on both the inlet and the outlet.

进气口和出气口都有NPT 外螺纹的接口

With Locknut and Gasket  带锁定螺母和垫圈

Bulkhead-mount vavles have a machined flange on inlet side with male straight pipe threading for locknut.Outlet connection is nonthreaded.

隔板式阀门在进气口侧有一个机加工法兰，带外螺纹直管螺纹，出气口连接方式为无螺纹
