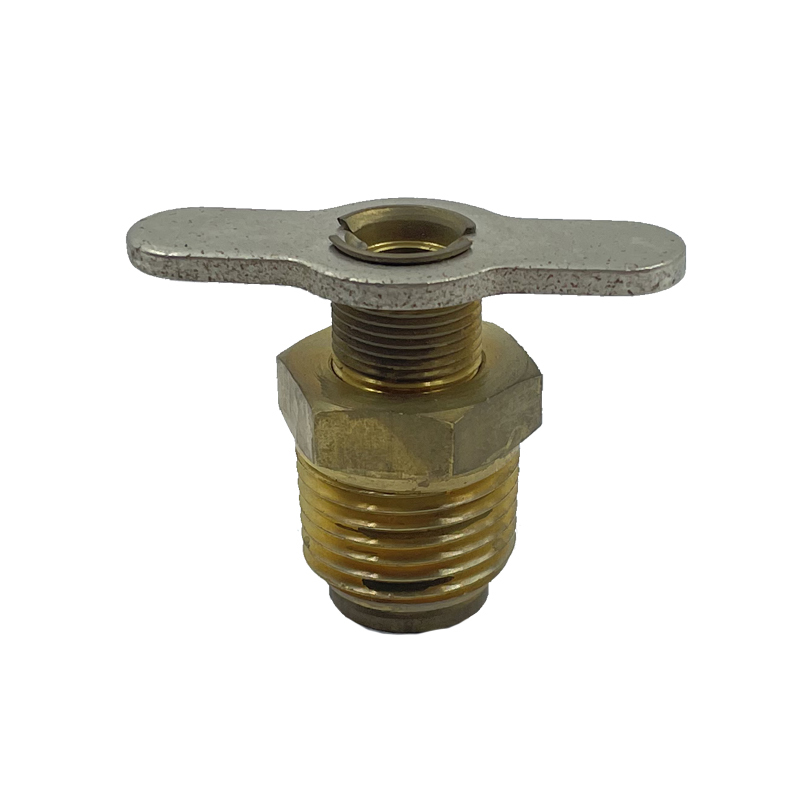

外密封放水阀
外密封放水阀

数量
- +
库存载入中···
  •
货号 规格(Inch) 材质 连接方式 温度范围 工作压力 包装数量 库存 购买数量
CG-DCEO-12 1/8" NPT Male 黄铜 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-25 1/4" NPT Male 黄铜 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-33 3/8" NPT Male 黄铜 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-50 1/2" NPT Male 黄铜 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-12-304 1/8" NPT Male 不锈钢 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-25-304 1/4" NPT Male 不锈钢 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-33-304 3/8" NPT Male 不锈钢 -55° ~ +120°C 150PSI 9999999
- +
CG-DCEO-50-304 1/2" NPT Male 不锈钢 -55° ~ +120°C 150PSI 9999999
- +
批量加入购物车
  • 商品简介
  • 购买记录
  • 顾客评价(0)
商品名称
外密封放水阀

Body and stem:Brass,stainless steel is also available.

阀体与阀杆:材质为黄铜,不锈钢同样可以

Nickle plated Steel T Handle

碳钢镀镍T型手柄

Working Pressure: 150PSI

工作压力:150PSI

Temperature Range: -65°F to +250°F (-55° to +120°C)

温度范围:-55℃到120

"1/4"" Male NPT ,DCEO style is with Viton O-Ring sealing,

DCE style is with metal to metal sealing."

1/4"外螺纹NPTDCEO型带氟橡胶O型圈密封,DCE型带金属硬密封

Drain Cocks --- Both external -seat and internal seat drain cocks are manufactured to the highest quality standards .Hand-tightening provides a metal to metal seal . For use with low pressure air ,water ,gas and certain other fluids.

放水阀---外部阀座和内部阀座配合放水是制造的最高质量标准, 手柄旋转收紧硬密封。用于低压空气、水、气体和某些其他流体
